Image Analysis PicEd Cora:
Metallography

Grain size distribution steel type 1.334
(Used as diesel motor fuel injection needle)

Original grinded at X1000 marked grains
1. Grinded specimal at 1000 magnification 2. Marking grains
blue = counted grains Result histogram

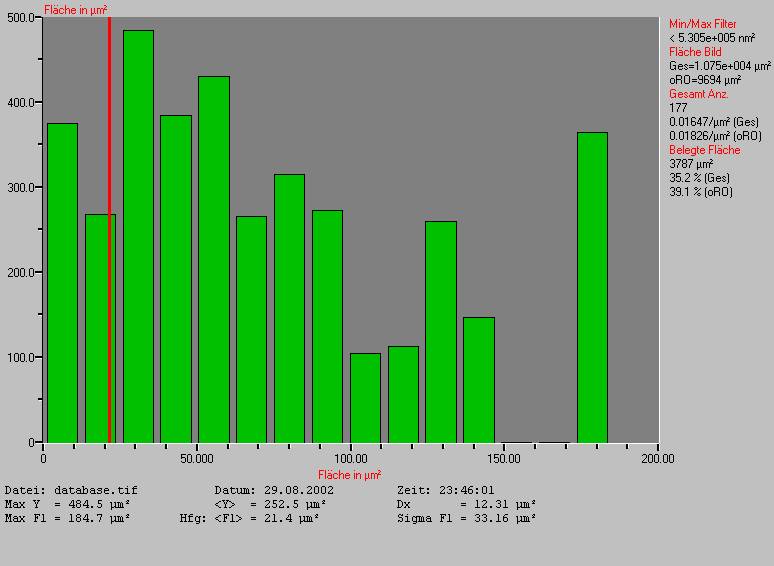

3. Counting only grains not cutting the boundary 4. Presenting the result as a histogram
