Image Analysis PicEd
Cora: |
Standard diagrams DIN 50601
(Ferrite or austenite grainsizes of steel and iron)
 |
The standard diagram option of
PicEd Cora image analysis system is helpfull in allday metallographical
work. Often the complexity of metall structure or difficulty in
preparation (grinding, polishing, etching) does not allow automatic
quantitative analyis.

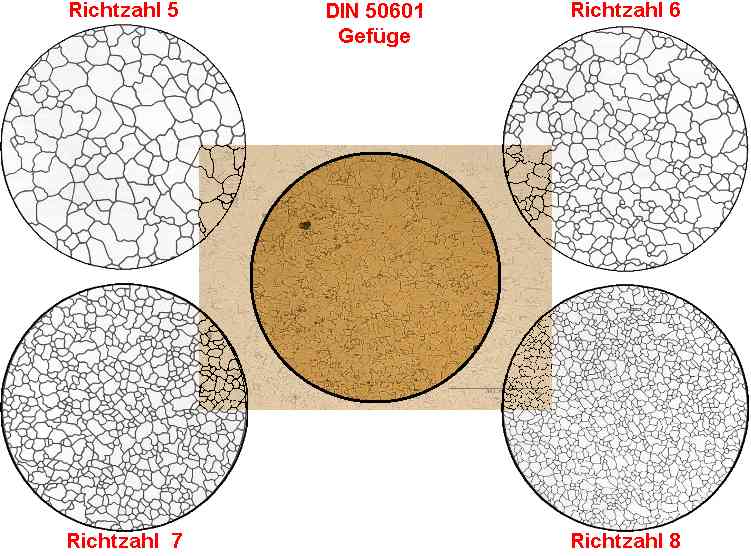

Therefore standard diagrams (often fixed at
a wall) are compared with the image seen in the ocular. In this representation the elements of the standard diagrams can be paged. |
The display order of video image and standard diagram is adjustable. Standard diagrams can be displayed transparent or above or below the video image. Also norm numbers can be added.
The PicEd Cora software ensures, that the both images (video
and standards) are displayed with correct scale.
Prerequisite for working with standard diagrams is the purchase of the appropriate standard sheet. rFrom this standard the diagrams are cutted out and stored. With the PicEd Cora tools scale errors can be excluded.

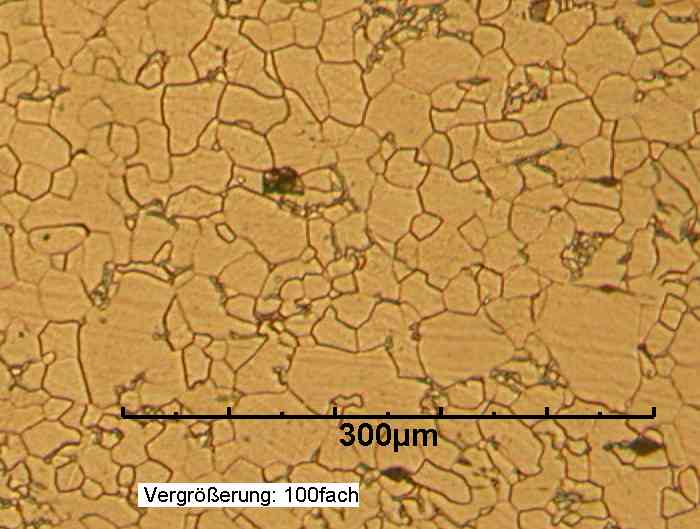

Because standard diagrams are displayed in a definite magnification, the same magnification has to be adjusted at the microscope.
After calibration of the system (microscope-camera-software) scale-correct work with standard diagrams is enabled.
